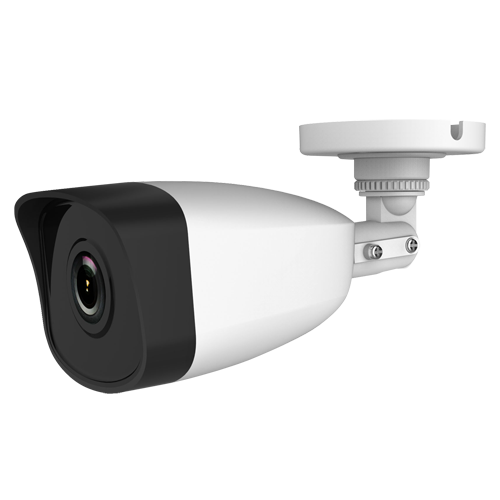

Name: SF-IPCV025-2 Safire IP - (2Mpx 2,8mm - 0.01 lx, IR up to 30m)
Price: 63.00 EUR
Availability: InStock

-15%

SF-IPCV025-2 Safire IP – (2Mpx 2,8mm – 0.01 lx, IR up to 30m)

~~74.00 €~~ 63.00 €

Description

Safire IP SF-IPCV025-2

Name	ULTIPOWER 0054af
Code	N29980
Standards and protocols	IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP
Packet Filtering / Forwarding Rates	10BASE-T: 14880 pps/port 100BASE-TX: 148800 pps/port
Transmission method	Store-and-Forward
Ports	5x RJ45 10/100 Mbps (auto-negotiation, Auto MDI/MDIX), 4 of them with PoE option
Cabling requirements	10Base-T: UTP cat. 3, 4 or 5 (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m) 100Base-Tx: UTP cat. 5 or 5e (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m)
LED indicators	Power, Link/Act, 100M, PoE Status
Certificate	CE
Dimensions [mm]	120x87x30
Environment	Operating temperature range: 0℃…40℃ Storage temperature range: -40℃…70℃ Relative humidity range: 10%…90%, without condensation
Power	230 VAC
Other features	Support for (PD) PoE devices compliant with IEEE802.3af standard Support for auto-learning and auto-aging, 1k MAC address entries Support for bandwidth control in full duplex (IEEE802.3x) and a back-pressure function in half-duplex mode

Name	ULTIPOWER 2224af
Code	N29987
Standards and protocols	IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP
Packet Filtering / Forwarding Rates	10BASE-T: 14880 pps/port 100BASE-TX: 148800 pps/port
Transmission method	Store-and-Forward
Ports	24x RJ45 10/100 Mbps (auto-negotiation, Auto MDI/MDIX), all with PoE option 2x RJ45 1000 Mbps 2x SFP 1000 Mbps
Cabling requirements	10Base-T: UTP cat. 3, 4 or 5 (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m) 100Base-Tx: UTP cat. 5 or 5e (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m)
LED indicators	Power, Link/Act, 100M, PoE Status
Certificate	CE
Dimensions [mm]	441x330x45
Environment	Operating temperature range: 0℃…40℃ Storage temperature range: -40℃…70℃ Relative humidity range: 10%…90%, without condensation
Power	230 VAC
Other features	Support for (PD) PoE devices compliant with IEEE802.3af standard Support for auto-learning and auto-aging of MAC addresses Support for bandwidth control in full duplex (IEEE802.3x) and a back-pressure function in half-duplex mode

Name	POE084832
Code	M18278
Input voltage	176-264 VAC, 50 Hz
Output voltage range	45.6-52.8 VDC
Max output power	153.6 W
Rated efficiency	87%
Max total output current	3.2 A @ 48 V
Number of outputs	8
Max output current of individual outputs	0.4 A @ 48 V
Short circuit protection	fuses or PTCs
Overload protection	automatic
Overvoltage protection	automatic
Operating temperature	-10°C…40°C
Dimensions (W x H x D)	270 x 307 x 116
Weight	3.7 kg
Remarks	Metal housing, 15 mm spacing between the rear panel and wall

Name	ULTIPOWER 114-2POE-20
Code	N29972
Standards and protocols	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow control IEEE 802.1Q VLAN IEEE 802.3af
Functions	PoE IEEE 802.3af MAC auto-learning and auto-aging Bandwidth control for full duplex (IEEE802.3x), back pressure control (half-duplex)
Frame forward rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port
Transmission method	Store-and-Forward
Ports	4x RJ45 10/100Mbps PoE 1x FO 2x SC 20 km SM
Network cabling requirements	10Base-T: UTP cat. 3, 4 or 5 (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m) 100Base-Tx: UTP cat. 5 or 5e (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m)
LED indicators	PWR1, PWR2, F1, POE
ESD immunity	< 6 kV
Dimensions [mm]	50x156x135
Operating environment	Operating temperature range: -40…80℃ Operating humidity: 5…95% (no condensation)
Power	12-48 VDC, 24 VAC (possibility of using two power supplies for redundancy)
