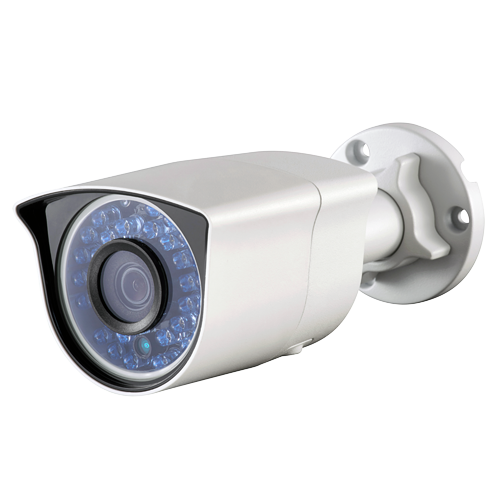

Name: SF-IPCV023-3W Safire IP - (3Mp 4mm - Wifi - 0.01 lx, IR up to 30m)
Price: 55.00 EUR
Availability: InStock

-15%

SF-IPCV023-3W Safire IP – (3Mp 4mm – Wifi – 0.01 lx, IR up to 30m)

~~65.00 €~~ 55.00 €

Description

Safire IP SF-IPCV023-3W – Wifi

Name	ULTIPOWER 124-4POE-20
Code	N29973
Standards and protocols	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow control IEEE 802.1Q VLAN IEEE 802.3af
Functions	PoE IEEE 802.3af MAC auto-learning and auto-aging Bandwidth control for full duplex (IEEE802.3x), back pressure control (half-duplex)
Frame forward rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port
Transmission method	Store-and-Forward
Ports	4x RJ45 10/100Mbps PoE 2x FO 2x SC 20 km SM
Network cabling requirements	10Base-T: UTP cat. 3, 4 or 5 (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m) 100Base-Tx: UTP cat. 5 or 5e (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m)
LED indicators	PWR1, PWR2, F1, POE
ESD immunity	< 6 kV
Dimensions [mm]	50x156x135
Operating environment	Operating temperature range: -40…80℃ Operating humidity: 5…95% (no condensation)
Power	12-48 VDC, 24 VAC (possibility of using two power supplies for redundancy)

Name	ULTIPOWER 0098at
Code	N29992
Standards and protocols	IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP
Forwarding rate	10BASE-T: 14880 pps/port 100BASE-TX: 148800 pps/port
Transmission method	Store-and-Forward
Ports	9x RJ45 10/100 Mbps (incl. 8x PoE); auto-negotiation, auto MDI/MDIX
Cabling requirements	10Base-T: UTP cat. 3, 4 or 5 (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m) 100Base-Tx: UTP cat. 5 or 5e (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m)
LED indicators	Power, Link/Act, 100M, PoE Status
Certification	CE
Dimensions [mm]	285x190x45
Environment	Operating temperature range: 0°C…40°C Storage temperature range: -40°C…70°C Operating humidity range: 10%…90% (no condensation) Storage humidity range: 5%…90% (no condensation)
Power	230 VAC
Other features	Support for PoE (PD) devices compliant with IEEE 802.3af and 802.3at standards Support for auto-learning and auto-aging of MAC addresses Support for bandwidth control in full duplex (IEEE802.3x) and a back-pressure function in half-duplex mode

Name	ULTIPOWER 2216af
Code	N29986
Standards and protocols	IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP
Packet Filtering / Forwarding Rates	10BASE-T: 14880 pps/port 100BASE-TX: 148800 pps/port
Transmission method	Store-and-Forward
Ports	16x RJ45 10/100 Mbps (auto-negotiation, Auto MDI/MDIX), all with PoE option 2x RJ45 1000 Mbps 2x SFP 1000 Mbps
Cabling requirements	10Base-T: UTP cat. 3, 4 or 5 (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m) 100Base-Tx: UTP cat. 5 or 5e (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m)
LED indicators	Power, Link/Act, 100M, PoE Status
Certificate	CE
Dimensions [mm]	441x330x45
Environment	Operating temperature range: 0℃…40℃ Storage temperature range: -40℃…70℃ Relative humidity range: 10%…90%, without condensation
Power	230 VAC
Other features	Support for (PD) PoE devices compliant with IEEE802.3af standard Support for auto-learning and auto-aging of MAC addresses Support for bandwidth control in full duplex (IEEE802.3x) and a back-pressure function in half-duplex mode
