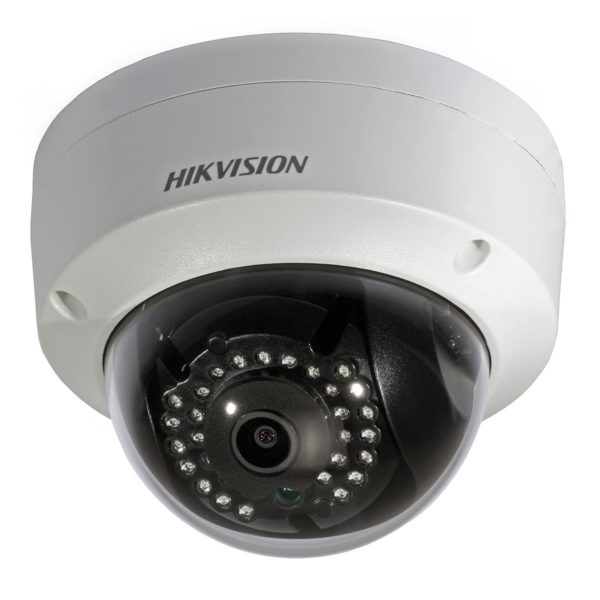

DS-2CD2142FWD-I Dome IP Camera Hikvision (4MP, 4mm, 0.01 lx, IK08, IR up to 30m)

  • Description

Description

Key features
  • Resolution: 4 MP (2688×1520)
  • Image processing functions: 3D-DNR, WDR, BLC
  • WDR (hardware): 120 dB
  • IR range up to 30 m
  • Intelligent image analysis (virtual line crossing, intrusion detection)
  • Regions of interest (ROI)
  • H.264 / H.264+ / MJPEG compression
  • Support for microSD/microSDHC/microSDXC cards up to 128 GB
  • Mechanically switching IR filter
  • Vandal-proof housing with IK08 rating
  • IP66 rating
  • Power: 12 VDC or PoE (802.3af)
The DS-2CD2142FWD-I K17367 camera offers excellent parameters for affordable price. The dome camera has been equipped with high quality 4 MP (2688×1520) CMOS sensor providing perfect video even in low-light conditions. The camera has intelligent analysis functions such as line crossing and intruder detection in a specific area. The user can setup regions of interest (ROI) – parts of the image with increased video transmission parameters.
The user can select H.264, H264+, or MJPEG video compression. In the case of the H.264+ compression, the data stream is additionally minimized for static scenes, without noticeable loss of image quality, which saves the disk space.

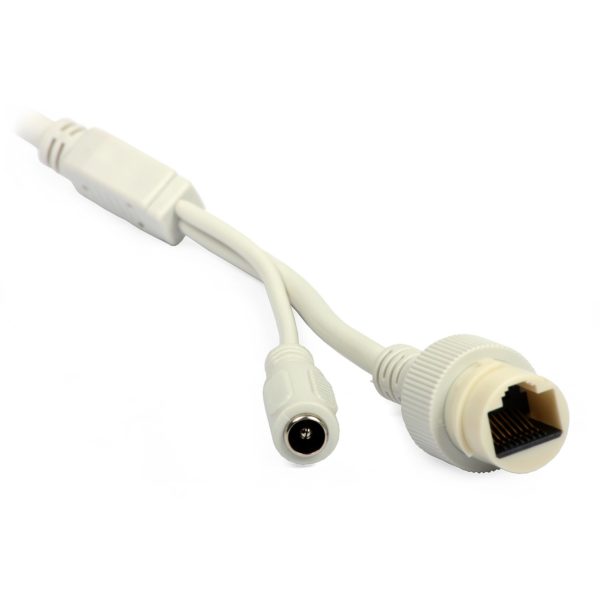

The camera can operate outdoors or indoors. Its housing with high ingress protection rating (IP66) protects the electronics against adverse weather conditions. The built-in IR illuminator has a range of up to 30 m. The camera can be powered with a 12 VDC power source or via PoE (802.3af).
Ezviz (EasyVision) is a free service which can be activated in Hikvision NVRs and IP cameras. This free service allows less advanced users to easily access to the video from the cameras via the Internet, without forwarding router ports. To enable remote access, the user should only connect the device to the network (which requires a valid IP address and appropriate gateway settings). The next step is the creation of user account at the www.ezviz7.com website. The account can accommodate devices in a local area network (with activated Ezviz service). The devices will be available from anywhere via the Internet.
A degree of protection (IK rating) provided by enclosures for electrical equipment against external mechanical impacts is defined in the EN 62262 standard. The 62262:2003 standard specifies the conditions of the testing procedure.
The K17367 camera is IK08 rated.
IK code Protection Impact equivalent
Impact energy Free fall hammer – mass … height
IK06 1 J 0.5 kg …… 20 cm
IK07 2 J 0.5 kg …… 40 cm
IK08 5 J 1.7 kg … 29.5 cm
IK09 10 J 5 kg ……… 20 cm
IK10 20 J 5 kg ……… 40 cm
