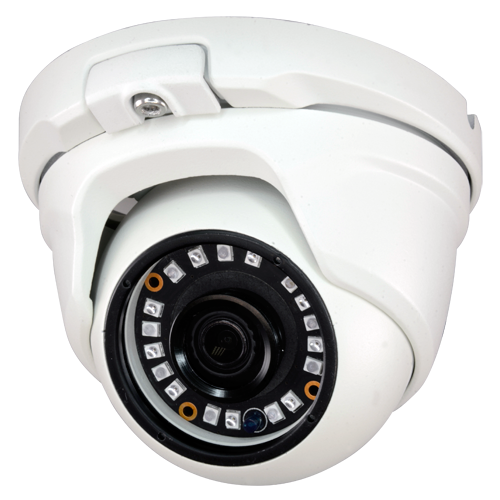

DM941ZIB-F4N1 – dome 4 in 1 – 1/2.9″ Sony© 2.2 Mpx Exmor IMX323, 2,8-8mm MotoZoom

  • Description

Description

  • Dome camera Range 1080p PRO
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/2.9″ Sony© 2.2 Mpx Exmor IMX323
  • Lens 2,8-8 mm MotoZoom / Autofocus
  • IR LEDs SMD Range 20 m
  • OSD remote menu from DVR

Varifocal dome camera with infrared, suitable for exterior. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p PRO.

Consisting of a 1/2.9″ Sony© 2.2 Megapixel Exmor sensor (model IMX323) and DSP (model V30), which offers a resolution of 1080p at 25 FPS. Varifocal lens of 2,8-8 mm with a diagonal viewing angle of  – 18 LEDs IR Range 20 m that activate automatically providing a sharp image at 0 Lux (total darkness) up to a maximum distance of 20 m. It has automatic IR Cut filter that permits clear, real colour, daytime images.

Thanks to its DSP it has OSD menu in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust the most important parameters:

  • ATR, Adaptive Tone Reproduction which improves the gradient and the definition
  • AE Shutter, automatic exposure control to optimize the input of received light
  • 2D-NR, digital noise reduction system without loss of focus
  • AWB, automatic white balance for true colours

BNC video connection in HD formats HDTVI / HDCVI / AHD / CVBS, switchable by switch by combining 3 threads.

Housing made of aluminum, weatherproof according to protocol IP66,, can be used for both indoor and outdoor. It has a sphere with three axes of rotation (3AXIS) that allow easy and accurate adjustment of the viewing angle, with wall or ceiling installation. It incorporates a screw connecting the base with the camera structure, for easy installation.
