Power Supply for CCTV Cameras: PROTEC 12VDC/1.5A (SMPS)

  • Description
  • Reviews (0)

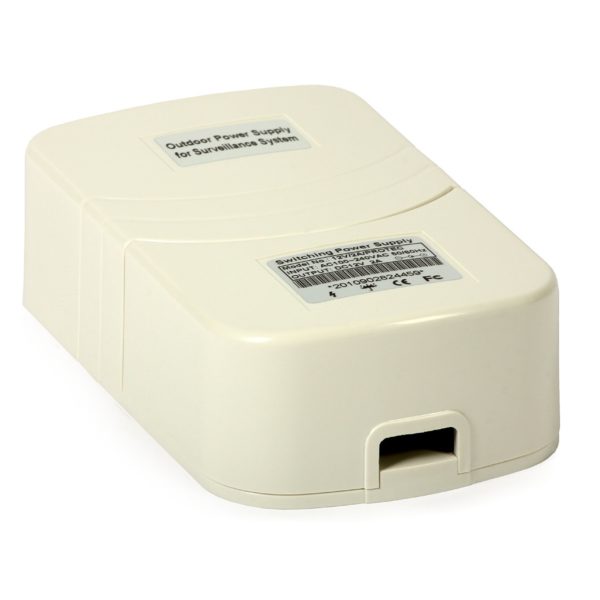

The M18171 AC/DC adapter dedicated for 12 VDC CCTV cameras operates in switching mode and can be placed outdoors on a wall (due to IP53 rating, the splash-proof housing should be protected by a roof/canopy). The connectors of the camera can be placed inside the housing of the power supply.

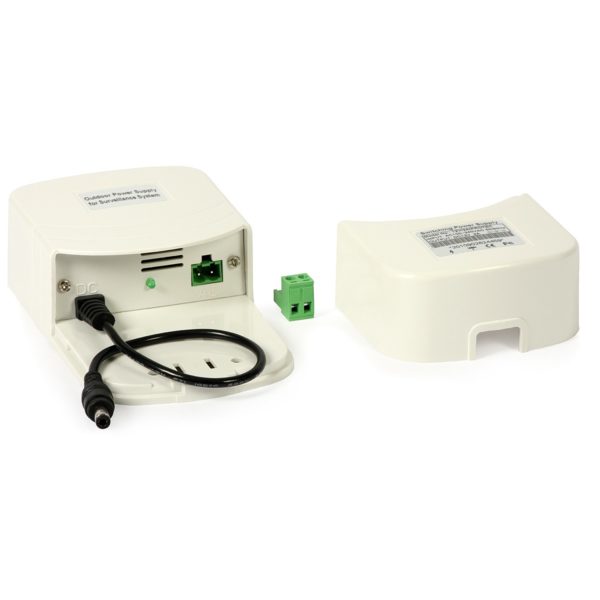

Installation steps:
  • take off the cover,
  • mount the main part on a wall (in vertical position, with connectors facing downward), using two screw anchors (not included),
  • connect AC power cable (not live!) to the green connector/plug,
  • insert the green connector to the power supply (into the green socket),
  • connect the suitable connector of the black cable to DC output,
  • close the cover,
  • switch on the 100…240 VAC power line.
Correct installation of the power supply is possible only in vertical position, with connectors facing downward.
Distinguishing features
  • AC input: 100…240 VAC (via screw connector)
  • DC output: 12 V (stabilized)
  • Current capacity: 1.5 A
  • Output connector: 2.1/5.5 mm plug integrated with the cable (included)
  • Splash-proof housing suitable for outdoor applications (to be mounted on a wall under a roof/canopy)
  • IP53 rating
  • The cover can hide camera connectors
