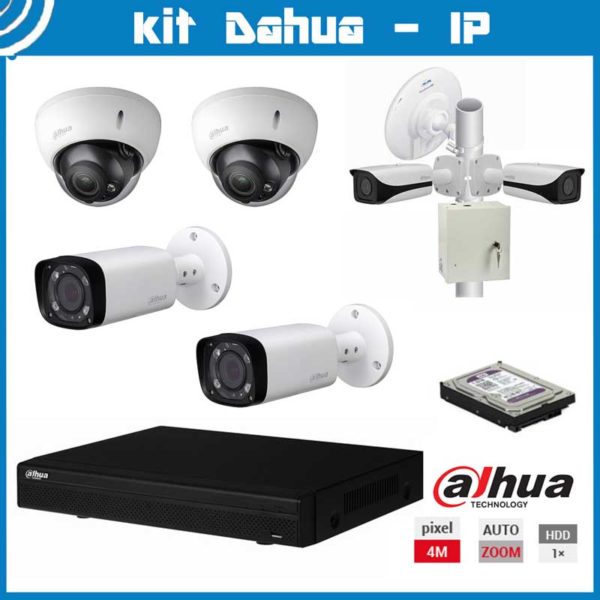

Videosecurity Kit Dahua IP – 6ch- 2xDome+2xBullet + 2xWifi – 4mpx – IR


Videosecurity Kit Dahua IP – 6ch- 2xDome+2xBullet + 2xWifi – 4mpx – IR

1,444.00  1,379.00

Category: Tags: ,
  • Description


Videosecurity kit 6ch Dahua IP – 4mpx – IR –  2x Dome + 2xBullet + 2xBullet Wifi
  • 0 out of 5

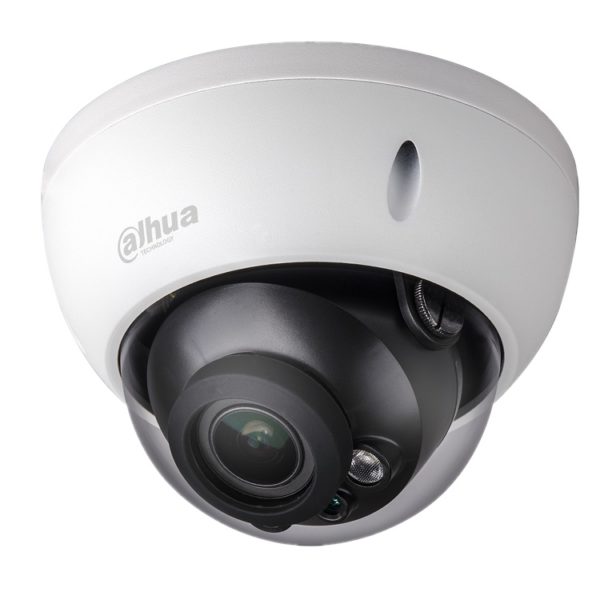

    IPC-HDBW2421R-ZS DAHUA IP Dome – (4Mp 2,8-12mm MotoZoom, 0.01 lx, IR up to 30m)

    Image Sensor 1/3” 4Megapixel progressive scan CMOS
    Effective Pixels 2688(H)x1520(V)
    RAM/ROM 512MB/32MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
    Minimum Illumination 0.03Lux/F1.4 (Color,1/3s,30IRE)

    0.3Lux/F1.4 (Color,1/30s,30IRE)

    0Lux/F1.4(IR on)

    S/N Ratio More than 50dB
    IR Distance Distance up to 50m (164ft)
    IR On/Off Control Auto/ Manual
    IR LEDs 2
    Lens Type Motorized/ Auto Iris(DC)
    Mount Type Board-in
    Focal Length 2.7mm~12mm
    Max. Aperture F1.4
    Angle of View H: 100°~35° , V:54°~20°
    Optical Zoom 4x
    Focus Control Motorized
    Close Focus Distance 0.3m
    DORI Distance Lens Detect Observe Recognize Identify
    W 68(223ft) 27m(89ft) 14m(46ft) 7m(23ft)
    T 192m(630ft) 77m(253ft) 39m(128ft) 19m(62ft)
    Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
    IVS Tripwire, Intrusion, Object Abandoned/Missing
    Advanced Intelligent Functions Face Detection
    Compression H.265+/H.265/H.264+/H.264
    Streaming Capability 3 Streams
    Resolution 4M(2688×1520)/3M(2304×1296)/1080P(1920×1080) /1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
    Frame Rate Main Stream: 4M(1~25/30fps)
    Sub Stream: D1(1~25/30fps)
    Third Stream: 720P(1~25/30fps)
    Bit Rate Control CBR/VBR
    Bit Rate H.264: 24~10240Kbps H.265: 14~9984Kbps
    Day/Night Auto(ICR) / Color / B/W
    BLC Mode BLC / HLC / WDR(120dB)
    White Balance Auto/Natural/Street Lamp/Outdoor/Manual
    Gain Control Auto/Manual
    Noise Reduction 3D DNR
    Motion Detetion Off / On (4 Zone, Rectangle)
    Region of Interest Off / On (4 Zone)
    Electronic Image Stabilization (EIS) N/A
    Smart IR Support
    Defog N/A
    Digital Zoom 16x
    Flip 0°/90°/180°/270°
    Mirror Off / On
    Privacy Masking Off / On (4 Area, Rectangle)
    Compression G.711a/ G.711Mu/ AAC/ G.726
    Ethernet RJ-45 (10/100Base-T)

    FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

    UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;


    Interoperability ONVIF, PSIA, CGI
    Streaming Method Unicast / Multicast
    Max. User Access 10 Users /20 Users
    Edge Storage NAS

    Local PC for instant recording

    Mirco SD card 128GB

    Web Viewer IE, Chrome, Firefox, Safari
    Management Software Smart PSS, DSS, Easy4ip
    Smart Phone IOS, Android
    Certifications CE (EN 60950:2000)


    FCC: FCC Part 15 Subpart B

    Video Interface N/A
    Audio Interface Built-in Mic
    RS485 N/A
    Alarm N/A
    Power Supply DC12V, PoE(802.3af)(Class 0)
    Power Consumption <8.5W
    Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
    Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
    Ingress Protection IP67
    Vandal Resistance N/A
    Casing Metal
    Dimensions Φ122mm×104.9mm (4.8”×4.13”)
    Net Weight 0.6Kg (1.32lb)
    Gross Weight 0.71Kg (1.57lb)
    204.00  154.00
  • 0 out of 5

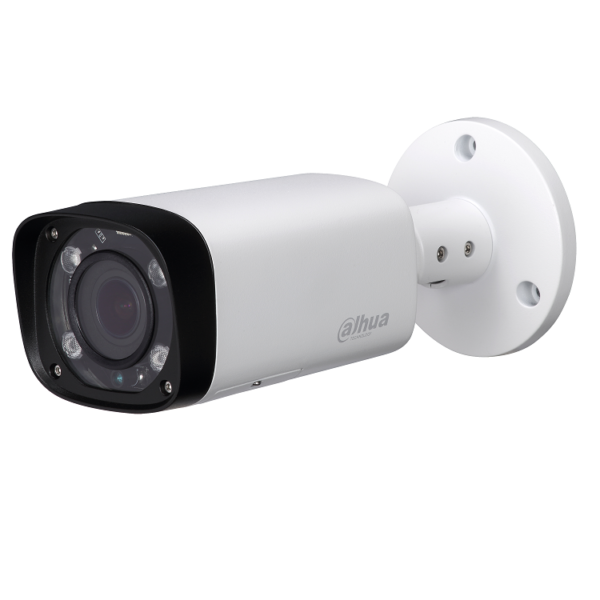

    IPC-HFW2421R-VF-IRE6 DAHUA IP – (4Mp 2,7-12mm, 0.01 lx, IR up to 60m)

    204.00  170.00
  • 0 out of 5

    Dahua NVR4216-4K – 16 Ch – HDMI – H.264/H.265 – 8mpx – 4K

    Main Processor Quad-core embedded processor
    Operating System Embedded LINUX
    Interface 1 HDMI, 1 VGA
    Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
    Multi-screen Display 8CH: 1/4/8/9
    16/32CH: 1/4/8/9/16
    OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
    Video Detection and Alarm
    Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
    Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering
    Alarm input 4 Channel, Low Level Effective,

    Green Terminal Interface

    Relay Output 2 Channel, NO/NC Programmable,

    Green Terminal Interface

    Playback and Backup
    Playback 8CH: 1/4/8
    16/32CH: 1/4/8/16
    Search Mode Time/Date, Alarm, MD & Exact search

    (accurate to second), Smart search

    Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play,

    Next File, Previous File, Next Camera,

    Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

    Backup Mode USB Device/Network
    Internal HDD 2 SATA III Port, Up to 6 TB capacity for each HDD
    HDD Mode Single
    eSATA N/A
    Auxiliary Interface
    USB 2 USB Ports (1 USB2.0, 1 USB3.0)
    RS232 N/A
    RS485 N/A
    Third-party Support
    Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom,

    Canon, CP Plus, Dynacolor, Honeywell, Panasonic,

    Pelco, Samsung, Sanyo, Sony, Videotec, and more

    Audio and Video
    IP Camera Input 8/16/32 Channel
    Two-way Talk 1 Channel Input, 1 Channel Output, RCA
    Compression H.265/H.264
    Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
    Record Rate 200Mbps
    Bit Rate 16Kbps ~ 20Mbps Per Channel
    Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
    Record Interval 1 ~ 120 min (default: 60 min), Pre-record:

    1 ~ 30 sec, Post-record: 10 ~ 300 sec

    Interface 1 RJ-45 Port (10/100/1000Mbps)
    Ethernet Port 1 Independent 1000Mbps Ethernet Port
    PoE N/A
    Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,

    IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip

    Max. User Access 128 users
    Smart Phone iPhone, iPad, Android
    Interoperability ONVIF 2.4, CGI Conformant
    Power Supply DC12V/4A
    Power Consumption <6.9W (Without HDD)
    Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
    Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
    Dimensions 1U, 375mm×281.5mm×56mm

    (14.8″ x 11.1″ x2.2″)

    Net Weight 1.6kg (3.5 lb) (without HDD)
    Gross Weight 3.2kg(7.1 lb)(without HDD)
    CE EN55032, EN55024, EN50130-4, EN60950-1
    FCC Part 15 Subpart B, ANSI C63.4-2014
    UL UL60950-1+CAN/CSA C22.2 No.60950-1
    299.00  209.00
