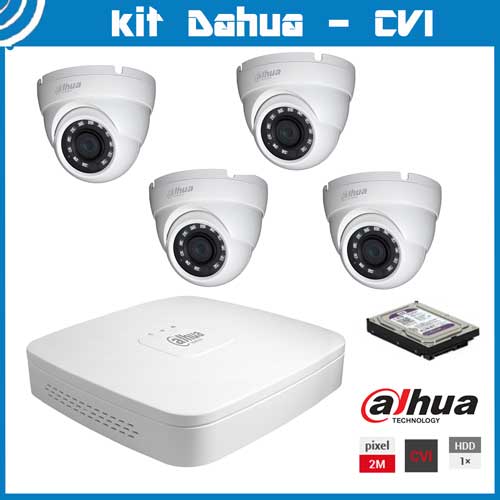

Videosecurity Kit HD-Cvi Dahua – 4ch- Dome – 2mpx – IR 20m

  • Description


Videosecurity kit 4ch Dahua HD-Cvi – 2mpx – 1080p – IR 20m –  Dome

1x XVR5104C

4x HAC-HDW1200M

4x Power Supply 12v-1a

1x HD 1TB

  • 0 out of 5

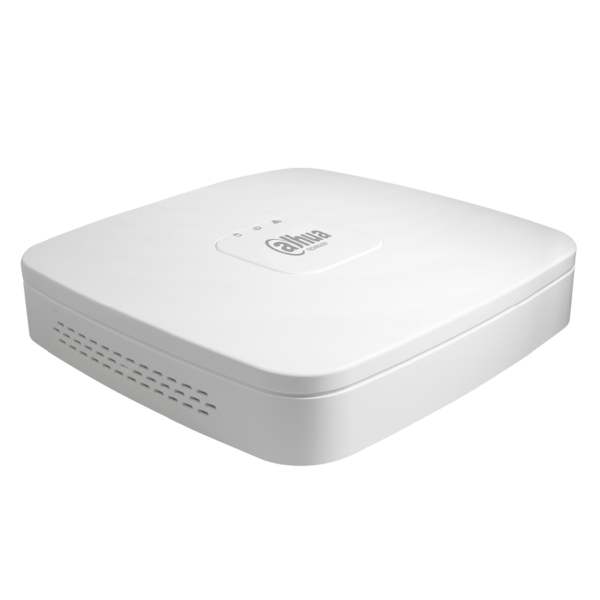

    XVR5104C Dahua 6 Channel Penta-brid 1080P Lite Compact DVR 4 ch + 2 ch IP

    Main Processor Embedded Processor
    Operating System Embedded LINUX
    Interface 1 HDMI ,1 VGA
    Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
    Multi-screen Display 4CH: 1/4/6

    8CH: 1/4/8/9/16

    16CH: 1/4/8/9/16/25

    OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
    Video Detection and Alarm
    Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
    Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
    Alarm input N/A
    Relay Output N/A
    Tracking Trigger Event N/A
    Playback and Backup
    Playback 4CH: 1/4

    8CH: 1/4/9

    16CH: 1/4/9/16

    Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
    Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
    Backup Mode USB Device/Network
    Internal HDD 1 SATA Port, up to 6TB capacity
    HDD Mode Single
    eSATA N/A
    Auxiliary Interface
    Front Cover N/A
    USB 4/8CH:2 USB Ports (2 USB 2.0)

    16CH:2 USB Ports (1 USB 2.0,1 USB 3.0)

    RS232 N/A
    RS485 1 Port, for PTZ Control
    Third-party Support
    Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
    Audio and Video
    HDCVI Camera Input 4/8/16 Channel
    IP Camera Input 4+2/8+4/16+8 Channel, each channel up to 5MP
    Audio In/Out 1/1
    Two-way Talk Reuse audio in/out, RCA
    Compression H.264+/H.264
    Resolution 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
    Record Rate Main Stream: 1080P(1~15fps)

    1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

    Sub steram:D1/CIF/QCIF(1~25/30fps)

    Bit Rate 1Kbps ~ 6144Kbps Per Channel
    Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
    Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
    Interface 4/8CH:1 RJ-45 Port (100M)

    16CH:1 RJ-45 Port (1000M)

    Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
    Max. User Access 128 users
    Smart Phone iPhone, iPad, Android
    Interoperability ONVIF 2.4.1, CGI Conformant
    Power Supply DC12V/2A
    Power Consumption <10W (Without HDD)
    Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
    Storage Conditions 0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH
    Dimensions Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″)
    Net Weight 0.75kg ( 1.7lb) (without HDD)
    Gross Weight 1.5kg (3.3lb)
    Installation Desktop installation
    Certifications FCC: Coming soon
    UL: Coming soon
    120.00  100.00
  • 0 out of 5

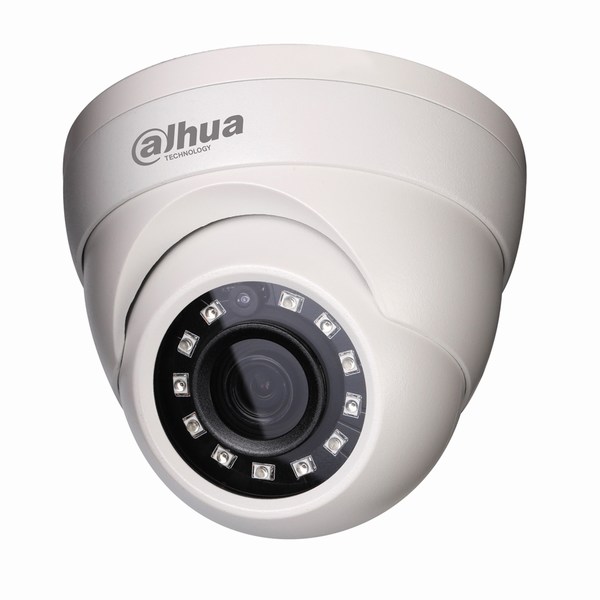

    HAC-HDW1200M DAHUA CVI – Dome (2MP, 3,6mm, 0.01 lx, IR up to 20m)

    30.00  25.00
  • 0 out of 5

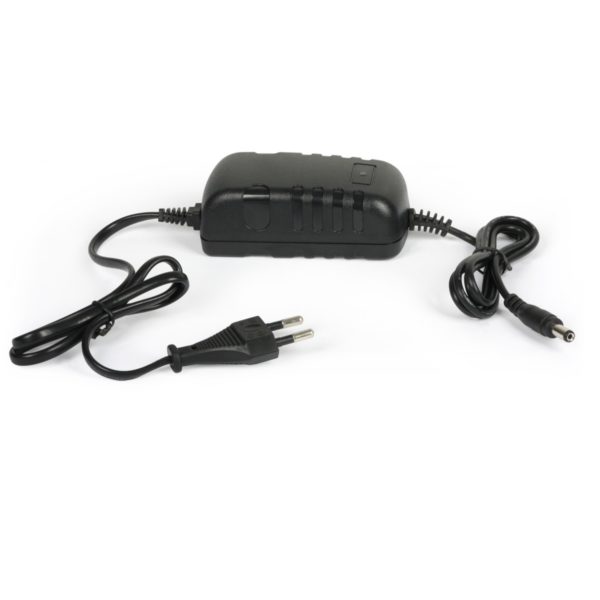

    Power Supply 12V – 1A

    4.00  3.00
