UBNT UniFi AP, AC, In Wall

  • Description


Product description UAP-AC-IW

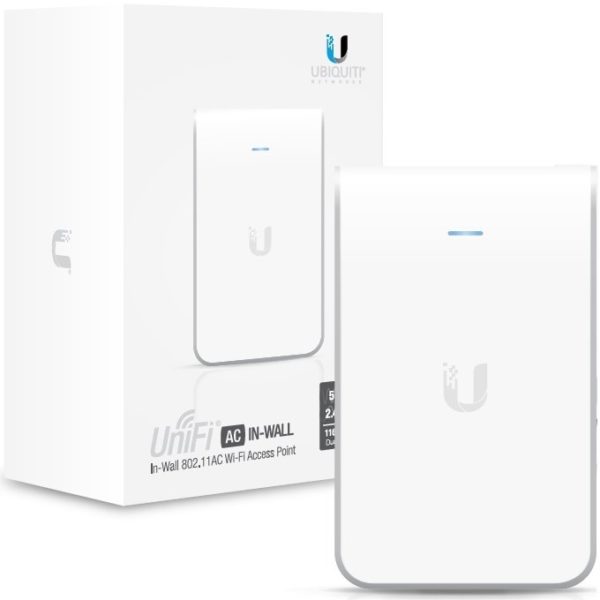

Ubiquiti UniFi AC In-Wall is small and discrete 802.11ac UAP device. It is 2×2 MIMO 2.4G and 2×2 MIMO 5G AP with throughput up to 1167Mbps and supports 802.11a/b/g/n/ac. UAP-AC-IW is designed for offices and hotels. It contains 1 built-in antenna (1dBi / 2.4G, 2dBi/5G) for range up to 25m. This device fully supports roaming and has 3x 10/100/1000Mbps LAN with PoE IN on back port and PoE OUT on one of the front ports – only 802.3af output supported.

Power over Ethernet

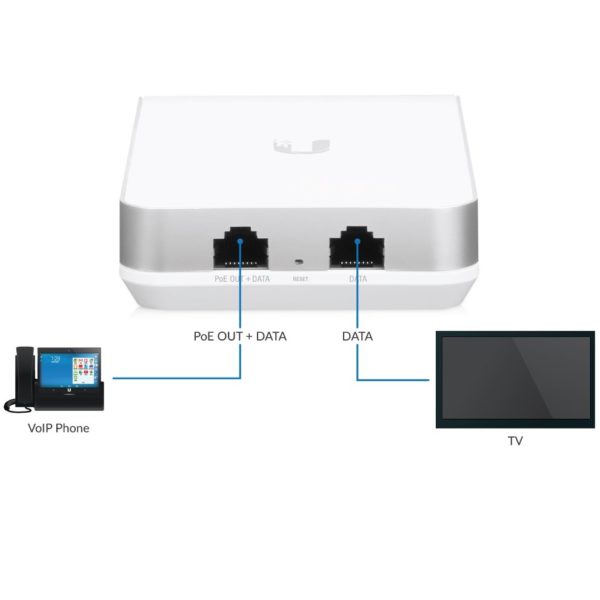

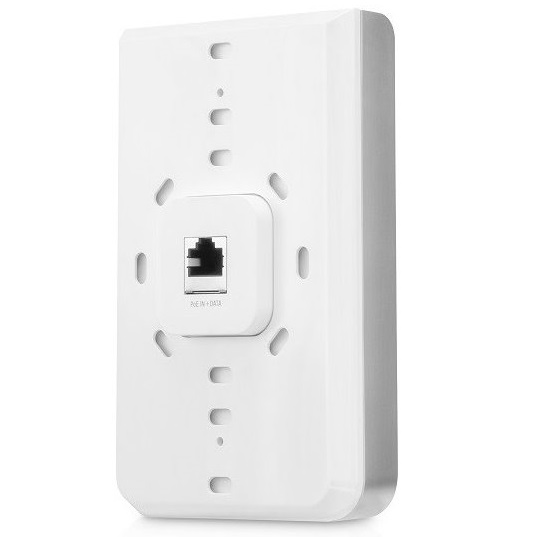

UAP-AC-IW is designed for simple use and quick instalation, but with advanced functions. UAP-AC-IW has 3 eth ports. The first one on the back side designated for device powering – 48V passive PoE, 802.3af and 802.3at. On the front panel are 2 eth ports – one of them supports 802.3af PoE OUT (for example for UVP) and the second is only data port (for example for PC). All ports are 10/100/1000Mbps.

Simple instalation

Quick instalation by 2 screws with pitch 83mm, designated for american boxes with dimensions (W x H x D): 57,2 x 95,3 x 85,7 mm.

You have to download and install UniFi Controller to manage any UniFi device. The big advantage is fact that this software is free of costs without limitations. This central management software allows to upload your own maps and to set the parameters as SSID, guest accounts, welcome page, traffic statistics and list od associated devices. Always quickly and simple.

General advantages of UniFi products

  • Zero Handoff Roaming
  • Wireless uplink
  • Up to 4 SSID
  • Detailed traffic stats
  • Guest network
  • Load balance
  • Speed limitaions for each SSID

Package contains

  • Device
  • Screws
