Name: Switch Mode Power Supply PSD 48VDC/1.25A (2.1/5.5mm(+))
Price: 20.00 EUR
Availability: InStock

-9%

Switch Mode Power Supply PSD 48VDC/1.25A (2.1/5.5mm(+))

~~22.00 €~~ 20.00 €

Categories: POE Switch for Dahua, POE Switch for HikVision, POE Switch for Safire, Switch - PoE Switch

Description

Description

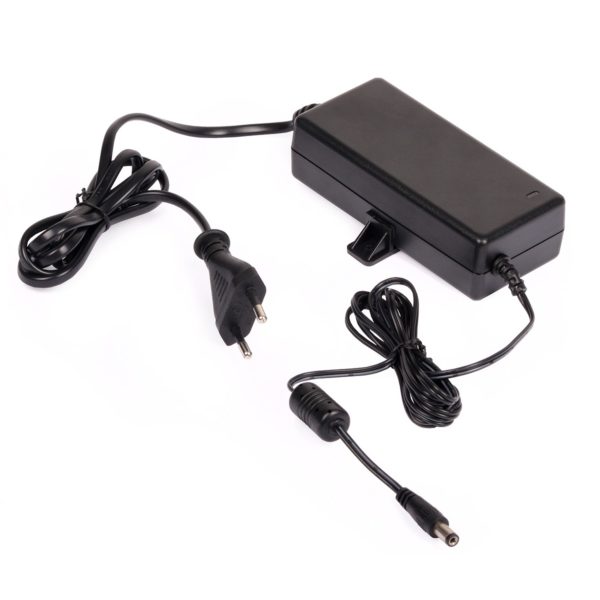

SMPS for devices powered with 48 VDC with current consumption up to 1.25 A. The DC lead cable is 145 cm long, terminated with DC 2.1/5.5 plug (“+” in the middle).

The power supply in connection with PoE N9206 adapter is used for powering IP PoE cameras or other PoE devices intended for 48 VDC supply voltage.

Name	ULTIPOWER 0098at
Code	N29992
Standards and protocols	IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP
Forwarding rate	10BASE-T: 14880 pps/port 100BASE-TX: 148800 pps/port
Transmission method	Store-and-Forward
Ports	9x RJ45 10/100 Mbps (incl. 8x PoE); auto-negotiation, auto MDI/MDIX
Cabling requirements	10Base-T: UTP cat. 3, 4 or 5 (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m) 100Base-Tx: UTP cat. 5 or 5e (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m)
LED indicators	Power, Link/Act, 100M, PoE Status
Certification	CE
Dimensions [mm]	285x190x45
Environment	Operating temperature range: 0°C…40°C Storage temperature range: -40°C…70°C Operating humidity range: 10%…90% (no condensation) Storage humidity range: 5%…90% (no condensation)
Power	230 VAC
Other features	Support for PoE (PD) devices compliant with IEEE 802.3af and 802.3at standards Support for auto-learning and auto-aging of MAC addresses Support for bandwidth control in full duplex (IEEE802.3x) and a back-pressure function in half-duplex mode

Name	ULTIPOWER 112-2POE-20
Code	N29971
Standards and protocols	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow control IEEE 802.1Q VLAN IEEE 802.3af
Functions	PoE IEEE 802.3af MAC auto-learning and auto-aging Bandwidth control for full duplex (IEEE802.3x), back pressure control (half-duplex)
Frame forward rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port
Transmission method	Store-and-Forward
Ports	2x RJ45 10/100Mbps PoE 1x FO 2x SC 20 km SM
Network cabling requirements	10Base-T: UTP cat. 3, 4 or 5 (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m) 100Base-Tx: UTP cat. 5 or 5e (up to 100 m) STP EIA/TIA-568 100 Ω (up to 100 m)
LED indicators	PWR1, PWR2, F1, POE
ESD immunity	< 6 kV
Dimensions [mm]	50x156x135
Operating environment	Operating temperature range: -40…80℃ Operating humidity: 5…95% (no condensation)
Power	12-48 VDC, 24 VAC (possibility of using two power supplies for redundancy)

Switch Mode Power Supply PSD 48VDC/1.25A (2.1/5.5mm(+))

Switch Mode Power Supply PSD 48VDC/1.25A (2.1/5.5mm(+))

Description
