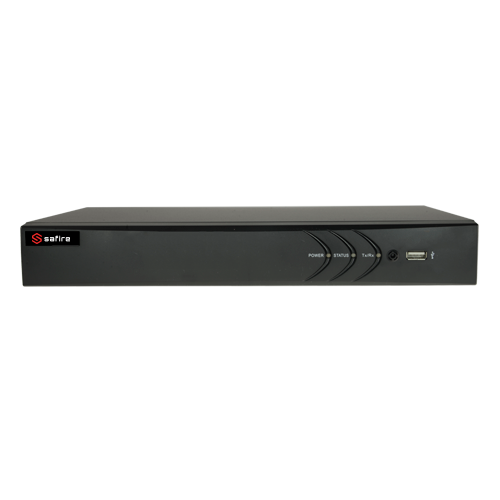

Safire HTVR3108A – 10ch 1080P Lite – 5in1 DVR – 8ch analog + 2ch IP + 4x audio

-15%

Safire HTVR3108A – 10ch 1080P Lite – 5in1 DVR – 8ch analog + 2ch IP + 4x audio

Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 8 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration 8 Channels from BNC and 2 Channels IP (1080p)
Video outputs 1 HDMI Full HD, 1 VGA
Audio inputs 4 Channel RCA
Audio outputs 1 Channel RCA
Bidirectional audio Reusing the audio input/output
Video / audio compression H.264+ / H.264 / G.711u
Display resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Total bandwidth 72 Mbps
Recording resolution 1080p Lite / 720p / WD1 / 4CIF /VGA / CIF
Main Stream coding 1080p Lite / 720p / VGA / WD1 / 4CIF / CIF (1/16 FPS~25 FPS)
Extra Stream coding CIF / QVGA / QCIF (1/16~25 FPS)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms 4 inputs / 1 relay
Video analysis VCA: Tripwire | Area intrusion | Audio exception
Recording method Manual, programmed, motion detection, alarm
Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network
Internal memory 1 HDD SATA 3.5″ of up to 6TB (not included)
Communication 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
Remote access Web browser, Smartphone App and Safire Control Center CMS Software
Power supply DC 12 V / 1.5 A
Dimensions / Weight 45 (He) x 260 (Wi) x 222 (De) mm / 1.2 Kg

127.00  108.00

  • Description

Description

Safire HTVR3108A – 10ch 1080P Lite – 5in1 DVR – 8ch analog + 2ch IP + 4x audio

  • Embedded processor
  • H.264+/H.264 Dual-stream video compression
  • 8Ch video HDTVI/HDCVI/AHD/CVBS / 4Ch audio
  • Resolution per channel: 1080PLite/720P (25FPS)
  • PTZ Control (by Coaxial)
  • Alarms
  • Full HD HDMI and VGA Output
  • Space for 1 HDD
