Videosecurity Kit HD-Cvi Dahua – 4ch- Dome – 2mpx – IR 30m – 2,8-12mm

  • Description


Videosecurity kit 4ch Dahua HD-Cvi – 2mpx – 1080p – IR30m –  Dome – 2,8-12mm

The KIT include:

1x XVR5104C

  • 0 out of 5

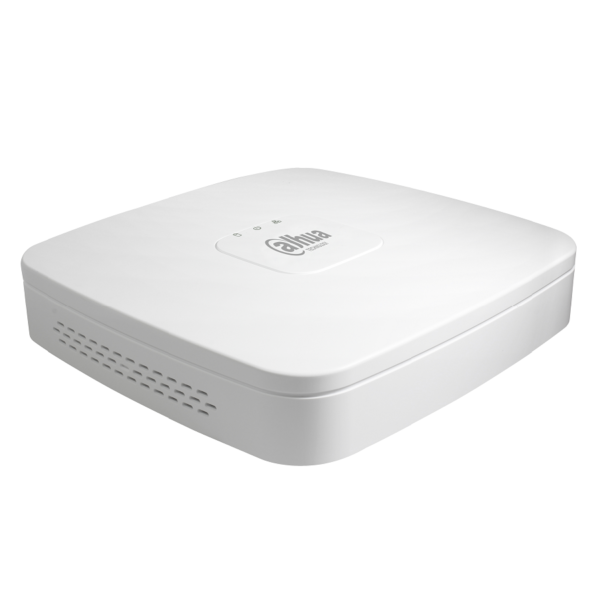

    XVR5104C Dahua 6 Channel Penta-brid 1080P Lite Compact DVR 4 ch + 2 ch IP

    Main Processor Embedded Processor
    Operating System Embedded LINUX
    Interface 1 HDMI ,1 VGA
    Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
    Multi-screen Display 4CH: 1/4/6

    8CH: 1/4/8/9/16

    16CH: 1/4/8/9/16/25

    OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
    Video Detection and Alarm
    Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
    Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
    Alarm input N/A
    Relay Output N/A
    Tracking Trigger Event N/A
    Playback and Backup
    Playback 4CH: 1/4

    8CH: 1/4/9

    16CH: 1/4/9/16

    Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
    Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
    Backup Mode USB Device/Network
    Internal HDD 1 SATA Port, up to 6TB capacity
    HDD Mode Single
    eSATA N/A
    Auxiliary Interface
    Front Cover N/A
    USB 4/8CH:2 USB Ports (2 USB 2.0)

    16CH:2 USB Ports (1 USB 2.0,1 USB 3.0)

    RS232 N/A
    RS485 1 Port, for PTZ Control
    Third-party Support
    Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
    Audio and Video
    HDCVI Camera Input 4/8/16 Channel
    IP Camera Input 4+2/8+4/16+8 Channel, each channel up to 5MP
    Audio In/Out 1/1
    Two-way Talk Reuse audio in/out, RCA
    Compression H.264+/H.264
    Resolution 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
    Record Rate Main Stream: 1080P(1~15fps)

    1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

    Sub steram:D1/CIF/QCIF(1~25/30fps)

    Bit Rate 1Kbps ~ 6144Kbps Per Channel
    Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
    Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
    Interface 4/8CH:1 RJ-45 Port (100M)

    16CH:1 RJ-45 Port (1000M)

    Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
    Max. User Access 128 users
    Smart Phone iPhone, iPad, Android
    Interoperability ONVIF 2.4.1, CGI Conformant
    Power Supply DC12V/2A
    Power Consumption <10W (Without HDD)
    Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
    Storage Conditions 0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH
    Dimensions Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″)
    Net Weight 0.75kg ( 1.7lb) (without HDD)
    Gross Weight 1.5kg (3.3lb)
    Installation Desktop installation
    Certifications FCC: Coming soon
    UL: Coming soon
    120.00  100.00

4x HAC-HDW1220R-VF

  • 0 out of 5

    HAC-HDW1220R-VF DAHUA HD-CVI – Dome (2MP, 2,7-13,5mm, 0.02 lx, IR up to 30m)

    Image Sensor 1/3″ CMOS
    Effective Pixels 2688(H)×1520(V), 4.1MP
    Scanning System Progressive
    Electronic Shutter Speed PAL: 1/4s~1/100,000s

    NTSC: 1/3s~1/100,000s

    Minimum Illumination 0.01Lux/F1.3, 0Lux IR on
    S/N Ratio More than 65dB
    IR Distance Up to 30m (98feet)
    IR On/Off Control Auto / Manual
    IR LEDs 2
    Lens Type Motorized lens / Fixed iris
    Mount Type Board-in
    Focal Length 2.7-12mm
    Max Aperture F1.3
    Angle of View H: 98°~26°
    Focus Control Auto / Manual
    Close Focus Distance 200mm


    Pan / Tilt / Rotation
    Pan/Tilt/Rotation Pan: 0° ~ 355°

    Tilt: 0° ~ 75°

    Rotation: 0° ~ 355°

    Resolution 4MP (2560×1440)
    Frame Rate 25fps@4MP, 25/30fps@1080P, 25/30fps@720P
    Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
    Day/Night Auto (ICR) / Manual
    OSD Menu Multi-language
    BLC Mode BLC / HLC / WDR
    WDR 120dB
    Gain Control AGC
    Noise Reduction 2D/3D
    White Balance Auto / Manual
    Smart IR Auto / Manual
    Certifications CE (EN55032, EN55024, EN50130-4)

    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    Audio Interface N/A
    Power Supply 12V DC ±25%
    Power Consumption Max 7.5W (12V DC, IR on)
    Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

    * Start up should be done at above -30°C (-22°F)

    Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
    Ingress Protection & Vandal Resistance IP67 & IK10
    Casing Aluminium
    Dimensions Φ122mm×88.9mm (Φ4.8″×3.5″)
    Net Weight 0.47kg (1.04lb)
    Gross Weight 0.62kg (1.37lb)
    72.00  60.00

4x Power Supply 12v-1a

1x HD 1TB
