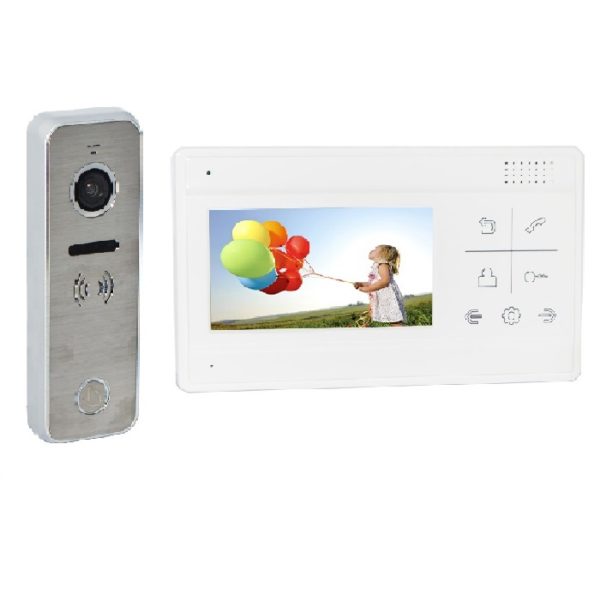

Color video Intercom – DoorPhone kit – EALINK M2604A-D23ACS / 4 wire

Description

Doorphone Kit  – EALINK M2604A-D23ACS – 4 wire

Outdoor station D23ACS: Outdoor station, 4 wire systemFeatures:Lock controlNight visionIP66Support 1 subscriberAcrylic front panel, Silver colorSpecifications:Power: DC11-13VCamera image senso…

Features:

• Lock control
• Night vision
• IP66
• Support 1 subscriber
• Acrylic front panel, Silver color

Specifications:

• Power: DC11-13V
• Camera image sensor: 1/4” color CMOS
• Working temperature: -25℃ to + 60℃
• Viewing angle: 110?
• Support electric lock type: DC5-24V electric lock
• Dimension: 133.2*48*15.5mm
• Weight: 280g

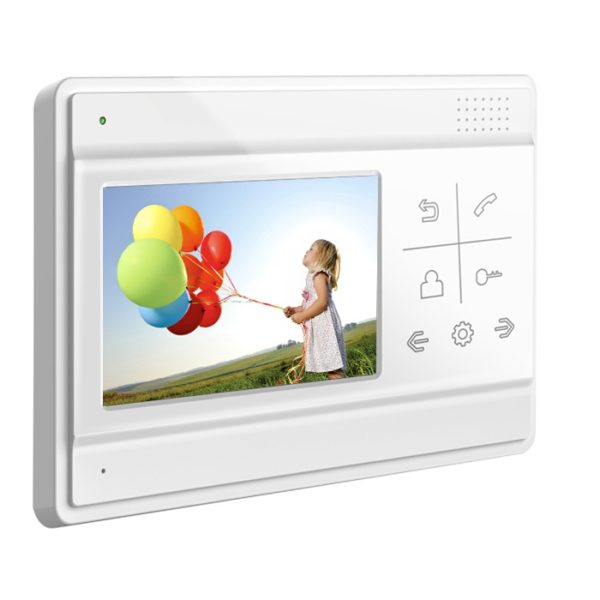

Monitor M2604: 4.3 inch indoor monitor, 4 wire system, photo capture modelFeatures:Hand free intercom, touch buttons operationLock control, Voice monitoring, Intercom transfer/call/br…

Features:

• Hand free intercom, touch buttons operation
• Lock control, Voice monitoring, Intercom transfer/call/broadcast
• Real-time monitoring to door station or CCTV camera
• Support 2 outdoor stations + slave monitors (up to 3) or 1
  outdoor station + 2 CCTVs
• 7 polyphonic ring-tones switch freely
• Multi languages available (customized)
• Compatible with all Ealink outdoor stations
• Photo capture and music playing

Specifications:

• Power input: DC14.5V/0.8A
• Power consumption: 5W (Max) / 0.8W(Standby)
• Resolution: 480*272 Digital LCD panel
• Wiring/Effective Length: 4 wire/100m
• Memory card: Micro mini SD card
• Dimension: 180*112*17mm
• Weight: 260g
