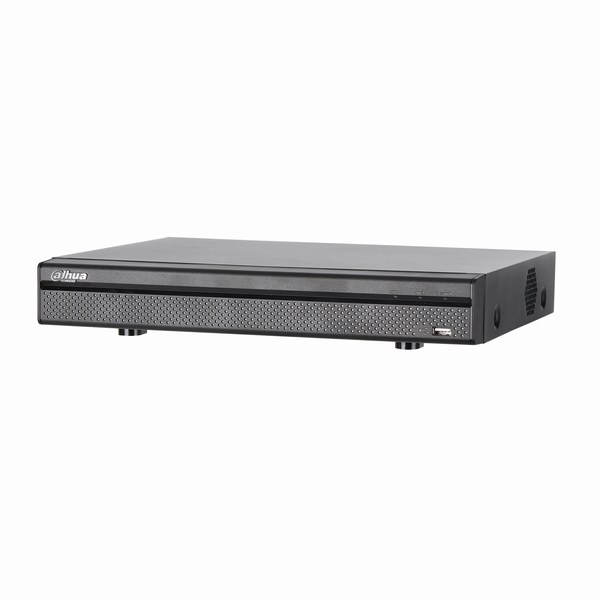

HCVR7216AN-4M Dahua 24 Ch Tribrid 4mpx DVR 16 ch analog + 6 ch IP – 2xhdd
System | |
Main Processor | Embedded Processor |
Operating System | Embedded LINUX |
Display | |
Interface | 1 HDMI(up to 3840×2160),1 VGA |
Resolution | 3840×2160,1920×1080, 1280×1024, 1280×720, 1024×768 |
Multi-screen Display | 4CH: 1/4/6
8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Video Detection and Alarm | |
Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank |
Alarm input | N/A |
Relay Output | N/A |
Tracking Trigger Event | N/A |
Playback and Backup | |
Playback | 4CH: 1/4
8CH: 1/4/9 16CH: 1/4/9/16 |
Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
Backup Mode | USB Device/Network |
Storage | |
Internal HDD | 1 SATA Port, up to 6TB capacity |
HDD Mode | Single |
eSATA | N/A |
Auxiliary Interface | |
Front Cover | N/A |
USB | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) |
RS232 | N/A |
RS485 | 1 Port, for PTZ Control |
Third-party Support | |
Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
Audio and Video | |
HDCVI Camera Input | 4/8/16 Channel |
IP Camera Input | 4+2/8+4/16+8 Channel, each channel up to 5MP |
Audio In/Out | 1/1 |
Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
Recording | |
Compression | H.264+/H.264 |
Resolution | 4MP,1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
Record Rate | Main stream: 4MP(1-15fps)
1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Sub steram:D1/CIF/QCIF(1~25/30fps) |
Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
Network | |
Interface | 1 RJ-45 Port (1000M) |
Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
Max. User Access | 128 users |
Smart Phone | iPhone, iPad, Android |
Interoperability | ONVIF 2.4.1, CGI Conformant |
Electrical | |
Power Supply | 4/8CH:DC12V/2A, 16CH: DC12V/3A |
Power Consumption | <15W (Without HDD) |
Environmental | |
Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F)/Less than 90% RH |
Construction | |
Dimensions | Mini 1U, 325mm×255mm×55mm (12.8″ x 10″ x 2.2″) |
Net Weight | 1.5kg (3.3 lb) (without HDD) |
Gross Weight | 2kg (4.4lb) |
Installation | Desktop installation |
Certifications | |
Certifications | FCC: Coming soon |
UL: Coming soon |
466.00 € 389.00 €
- Description
Description
Dahua HCVR7216AN-4M
- 16 Channel 4MP Mini 1U Digital Video Recorder
- Embedded processor
- 2x HDD
- H.264+/H.264 Dual-stream video compression
- Support HDCVI/CVBS video inputs
- Max 6/12/24 channels IP camera inputs, each channel up to 5MP
- Max 24/48/96Mbps Incoming Bandwidth
- HDMI output up to 4K(3840×2160) resolution
- Smart Search and Intelligent Video System
