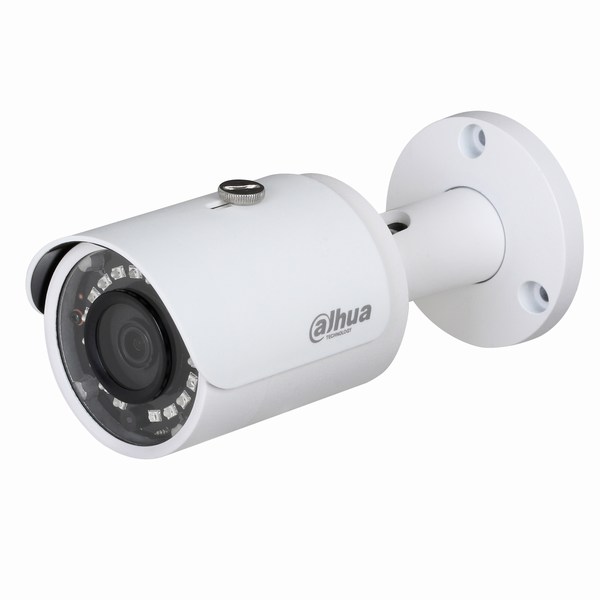

DAHUA IPC-HFW4431S IP – (4Mp WDR 3,6mm, 0,08 lx, IR up to 30m)

-7%

DAHUA IPC-HFW4431S IP – (4Mp WDR 3,6mm, 0,08 lx, IR up to 30m)

Camera IPC-HFW4431S IP
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio More than 50dB
IR Distance Distance up tp 30m (98ft)
IR On/Off Control Auto/ Manual
IR LEDs 18
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm, 6mm optional)
Max. Aperture F2.0 (F2.0, F2.0)
Angle of View H: 104° (87°, 55°), V: 57° (48°, 31°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 63m(207ft) 25m(82ft) 13m(43ft) 6m(20ft)
3.6 mm 80m(262ft) 32m(105ft) 16m(52ft) 8m(26ft)
3.6 mm 117m(384ft) 47m(154ft) 23m(75ft) 12m(39ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 4M(2688×1520)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480)/

VGA(640×480)/CIF(352×288/352×240)

Frame Rate Main Stream: 4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~10240Kbps

H.265: 14~9984Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS

Local PC for instant recording

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <6W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions 161.9mm×69.8mm×69.8mm (6.37”×2.75”×2.75”)
Net Weight 0.38Kg (0.84lb)
Gross Weight 0.44Kg (0.97lb)

140.00  130.00

  • Description

Description

DAHUA IPC-HFW4431S IP

  • 1/3” 4Megapixel progressive scan CMOS
  • H.265&H.264 triple-stream encoding
  • 25/30fps@4M(2688 x 1520)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens (3.6mm, 6mm optional)
  • Max. IR LEDs Length 30m
  • IP67, PoE
