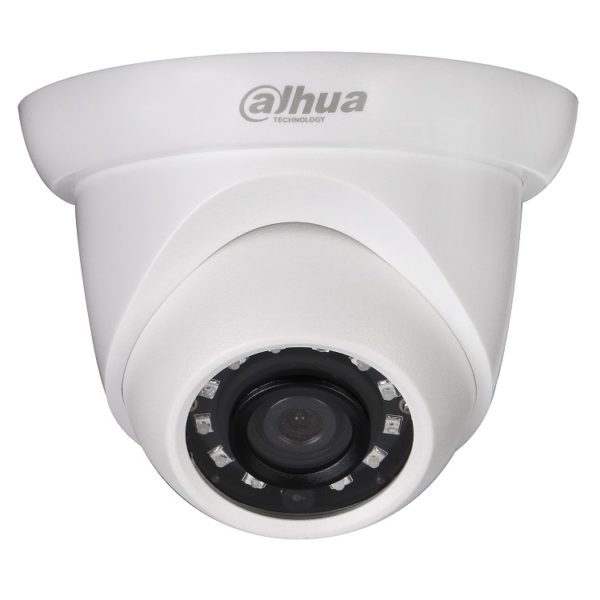

IPC-HDW1230S DAHUA IP Dome – (2Mp 2,8mm, 0.01 lx, IR up to 30m)
75.00 € 65.00 €
- Description
Description
DAHUA IP IPC-HDW1230S
- 1/3” 2Megapixel progressive CMOS
- H.265 & H.264 dual-stream encoding
- 25/30fps@1080P(1920×1080)
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.8 mm fixed lens
- Max IR LEDs Length 30m
- IP67, PoE
