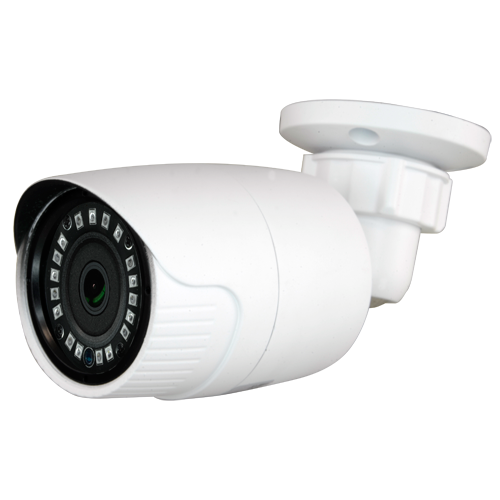

CV029ZFIB-F4N1 – Bullet 4 in 1 – 1/2.9″ Sony© 2.19 Mpix Exmor, 2.8~8 Vari-focal motorised lens

  • Description

Description

  • Bullet camera Range 1080p PRO
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/2.9″ Sony© 2.19 Mpix Exmor
  • Lens 3,6 mm
  • 18 IR SMD LEDs Range 20 m
  • OSD remote menu from DVR

Varifocal bullet camera with infrared, valid for exterior. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p PRO.

Consisting of a 1/2.9″ Sony© 2.2 Megapixel Exmor sensor (model IMX323) and DSP (model V30), which offers a resolution of 1080p at 25 FPS. Óptica varifocal con zoom motorizado y enfoque automático (Autofocus)  de 2.8 ~ 8 mm con un campo de visión diagonal de 94º a 25º. SMD IR LED’s with light sensor to provide sharp images at 0Lux (total darkness) at a maximum of 20 metres. It has automatic IR Cut filter that permits clear, real colour, daytime images.

Thanks to its DSP it has OSD menu in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust the most important parameters:

  • ATR, Adaptive Tone Reproduction which improves the gradient and the definition
  • AE Shutter, automatic exposure control to optimize the input of received light
  • 2D-NR, digital noise reduction system without loss of focus
  • AWB, automatic white balance for true colours

Video connection via BNC in HD formats HDTVI / HDCVI / AHD / CVBS, switchable by switch by DIP combination.

Housing made of aluminum, weatherproof according to protocol IP66,, can be used for both indoor and outdoor. Easy installation in wall or ceiling thanks to its support 360º.
