HD-TVI Camera V-CAM 361 (ceiling, 1080p, 3.6mm, 0.01 lx, IR up to 20m; CVBS, AHD, HD-CVI)

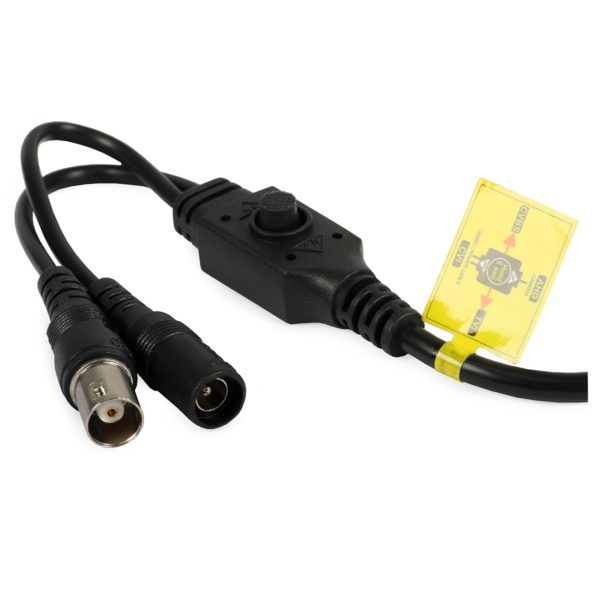

The video system is selected by long pressing (5 s) the thumb stick to the right (HD-TVI), left (CVBS), up (AHD), or down (HD-CVI).

• Resolution: 1080p (2 MP),
• Output video signal in HD-TVI, CVBS, AHD, HD-CVI standard,
• Sensitivity: 0.01 lx,
• Lens: 3.6 mm,
• Mechanically switching IR filter (ICR),
• Access to OSD menu via the video cable, from the HD-TVI DVR
• WDR,
• 2D DNR noise reduction,
• IR illuminator with range up to 20 m,
• Vandal-proof housing in white color.

V-CAM 361 M7404 camera has been designed for use in CCTV systems based on HD-TVI DVRs. The camera provides 1080p video. With high sensitivity (0.01 lx) and built-in IR illuminator with range up to 20 m, the camera ensures high quality image in low light or even no-light conditions.

High Definition Transport Video Interface (HD-TVI) is a new technology that allows users to send uncompressed, high-resolution video (up to 1080p) over coaxial or twisted-pair cables (using dedicated baluns). The transmitted video signal is in analog form, with bandwidth much greater than in the case of CVBS (SD). As the signal is not compressed, the picture is more natural during live viewing. There is no delay and the configuration of such a system is easier compared to IP CCTV solutions.

The camera has the ability to control the OSD menu using the video signal cable. The control is possible via a compatible DVR, after selecting PTZ control in its menu and switching on the menu of the camera, with access to all configuration options.

Mechanical IR-cut filter ensures perfect color rendition in daylight and full sensitivity with IR lighting.
