Product Tag - 4Mpx

  • HAC-HDBW1400R-VF DAHUA CVI - (4Mp 2,7-13,5mm, 0.03 lx, IR up to 30m)
    0 out of 5

    HAC-HDBW1400R-VF DAHUA CVI – (4Mp 2,7-13,5mm, 0.03 lx, IR up to 30m)

    115.00
  • 0 out of 5

    HAC-HDBW2401R-Z DAHUA HD-CVI – Dome (4MP, 2,7-12mm, 0.01 lx, IR up to 30m)

    Camera
    Image Sensor 1/3″ CMOS
    Effective Pixels 2688(H)×1520(V), 4.1MP
    Scanning System Progressive
    Electronic Shutter Speed PAL: 1/4s~1/100,000s

    NTSC: 1/3s~1/100,000s

    Minimum Illumination 0.01Lux/F1.3, 0Lux IR on
    S/N Ratio More than 65dB
    IR Distance Up to 30m (98feet)
    IR On/Off Control Auto / Manual
    IR LEDs 2
    Lens
    Lens Type Motorized lens / Fixed iris
    Mount Type Board-in
    Focal Length 2.7-12mm
    Max Aperture F1.3
    Angle of View H: 98°~26°
    Focus Control Auto / Manual
    Close Focus Distance 200mm

    7.87”

    Pan / Tilt / Rotation
    Pan/Tilt/Rotation Pan: 0° ~ 355°

    Tilt: 0° ~ 75°

    Rotation: 0° ~ 355°

    Video
    Resolution 4MP (2560×1440)
    Frame Rate 25fps@4MP, 25/30fps@1080P, 25/30fps@720P
    Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
    Day/Night Auto (ICR) / Manual
    OSD Menu Multi-language
    BLC Mode BLC / HLC / WDR
    WDR 120dB
    Gain Control AGC
    Noise Reduction 2D/3D
    White Balance Auto / Manual
    Smart IR Auto / Manual
    Certifications
    Certifications CE (EN55032, EN55024, EN50130-4)

    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    Interface
    Audio Interface N/A
    Eelectrical
    Power Supply 12V DC ±25%
    Power Consumption Max 7.5W (12V DC, IR on)
    Environmental
    Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

    * Start up should be done at above -30°C (-22°F)

    Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
    Ingress Protection & Vandal Resistance IP67 & IK10
    Construction
    Casing Aluminium
    Dimensions Φ122mm×88.9mm (Φ4.8″×3.5″)
    Net Weight 0.47kg (1.04lb)
    Gross Weight 0.62kg (1.37lb)
    162.00  135.00
  • 0 out of 5

    HAC-HDW1400R-VF DAHUA CVI – (4Mp 2,7-13,5mm, 0.03 lx, IR up to 30m)

    75.00  63.00
  • 0 out of 5

    HAC-HDW2401M DAHUA CVI – (4Mp 3,6mm, 0.03 lx, IR up to 20m)

    78.00  65.00
  • 0 out of 5

    HAC-HDW2401R-Z DAHUA CVI – (4Mp 2,7-13,5mm, – MotoZoom 0.03 lx, IR up to 30m)

    144.00  120.00
  • 0 out of 5

    HAC-HFW1400R-VF-IRE6 DAHUA CVI – (4Mp 2,7-13,5mm, 0.03 lx, IR up to 60m)

    114.00  95.00
  • 0 out of 5

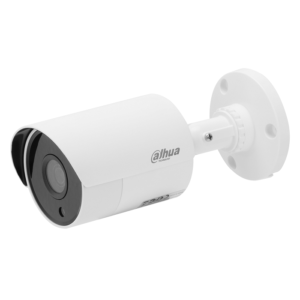

    HAC-HFW1400SL DAHUA CVI – (4Mp 2,8mm, 0.03 lx, IR up to 30m)

    79.00  59.00
  • 0 out of 5

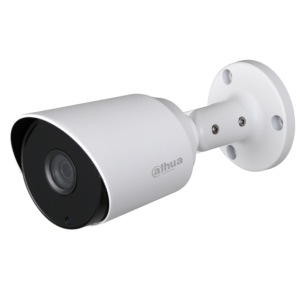

    HAC-HFW1400T DAHUA CVI – (4Mp 3,6mm, 0.03 lx, IR up to 20m)

    81.00  68.00
  • 0 out of 5

    HAC-HFW2401R-Z-IRE6 DAHUA CVI – (4Mp 2,7-12mm, 0.01 lx, IR up to 60m)

    150.00  125.00
  • 0 out of 5

    HAC-HFW2401R-Z-IRE6 DAHUA CVI – (4Mp 2.7-12mm, 0.01 lx, IR up to 60m)

    150.00  125.00
  • 0 out of 5

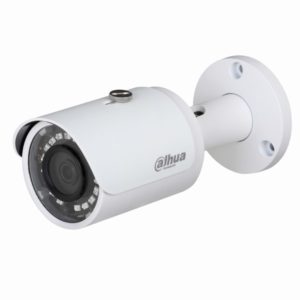

    HAC-HFW2401S DAHUA CVI – (4Mp 3,6mm, 0.03 lx, IR up to 30m)

    78.00  65.00
  • 0 out of 5

    IPC-HDBW2421R-ZS DAHUA IP Dome – (4Mp 2,8-12mm MotoZoom, 0.01 lx, IR up to 30m)

    Camera
    Image Sensor 1/3” 4Megapixel progressive scan CMOS
    Effective Pixels 2688(H)x1520(V)
    RAM/ROM 512MB/32MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
    Minimum Illumination 0.03Lux/F1.4 (Color,1/3s,30IRE)

    0.3Lux/F1.4 (Color,1/30s,30IRE)

    0Lux/F1.4(IR on)

    S/N Ratio More than 50dB
    IR Distance Distance up to 50m (164ft)
    IR On/Off Control Auto/ Manual
    IR LEDs 2
    Lens
    Lens Type Motorized/ Auto Iris(DC)
    Mount Type Board-in
    Focal Length 2.7mm~12mm
    Max. Aperture F1.4
    Angle of View H: 100°~35° , V:54°~20°
    Optical Zoom 4x
    Focus Control Motorized
    Close Focus Distance 0.3m
    DORI Distance Lens Detect Observe Recognize Identify
    W 68(223ft) 27m(89ft) 14m(46ft) 7m(23ft)
    T 192m(630ft) 77m(253ft) 39m(128ft) 19m(62ft)
    Pan/Tilt/Rotation
    Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
    Intelligence
    IVS Tripwire, Intrusion, Object Abandoned/Missing
    Advanced Intelligent Functions Face Detection
    Video
    Compression H.265+/H.265/H.264+/H.264
    Streaming Capability 3 Streams
    Resolution 4M(2688×1520)/3M(2304×1296)/1080P(1920×1080) /1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
    Frame Rate Main Stream: 4M(1~25/30fps)
    Sub Stream: D1(1~25/30fps)
    Third Stream: 720P(1~25/30fps)
    Bit Rate Control CBR/VBR
    Bit Rate H.264: 24~10240Kbps H.265: 14~9984Kbps
    Day/Night Auto(ICR) / Color / B/W
    BLC Mode BLC / HLC / WDR(120dB)
    White Balance Auto/Natural/Street Lamp/Outdoor/Manual
    Gain Control Auto/Manual
    Noise Reduction 3D DNR
    Motion Detetion Off / On (4 Zone, Rectangle)
    Region of Interest Off / On (4 Zone)
    Electronic Image Stabilization (EIS) N/A
    Smart IR Support
    Defog N/A
    Digital Zoom 16x
    Flip 0°/90°/180°/270°
    Mirror Off / On
    Privacy Masking Off / On (4 Area, Rectangle)
    Audio
    Compression G.711a/ G.711Mu/ AAC/ G.726
    Network
    Ethernet RJ-45 (10/100Base-T)
    Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

    FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

    UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

    IGMP; SNMP

    Interoperability ONVIF, PSIA, CGI
    Streaming Method Unicast / Multicast
    Max. User Access 10 Users /20 Users
    Edge Storage NAS

    Local PC for instant recording

    Mirco SD card 128GB

    Web Viewer IE, Chrome, Firefox, Safari
    Management Software Smart PSS, DSS, Easy4ip
    Smart Phone IOS, Android
    Certifications
    Certifications CE (EN 60950:2000)

    UL:UL60950-1

    FCC: FCC Part 15 Subpart B

    Interface
    Video Interface N/A
    Audio Interface Built-in Mic
    RS485 N/A
    Alarm N/A
    Electrical
    Power Supply DC12V, PoE(802.3af)(Class 0)
    Power Consumption <8.5W
    Environmental
    Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
    Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
    Ingress Protection IP67
    Vandal Resistance N/A
    Construction
    Casing Metal
    Dimensions Φ122mm×104.9mm (4.8”×4.13”)
    Net Weight 0.6Kg (1.32lb)
    Gross Weight 0.71Kg (1.57lb)
    204.00  154.00
